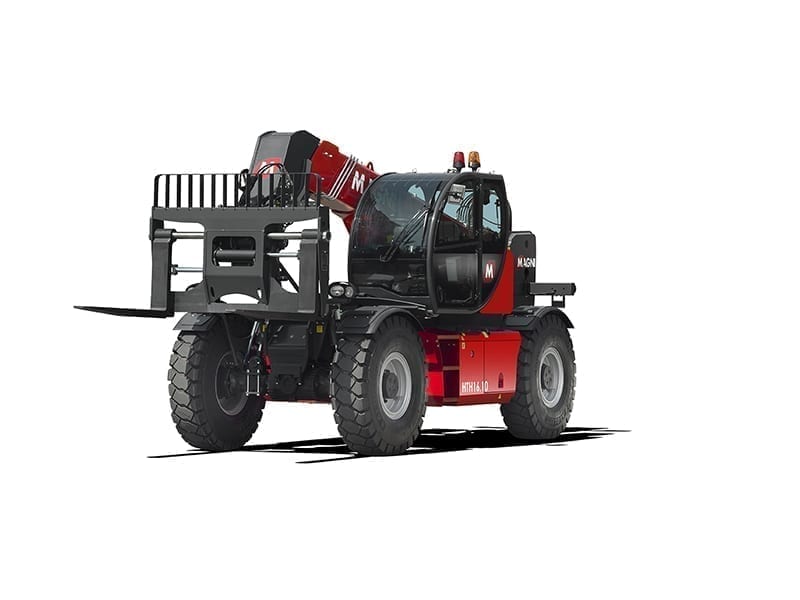

HTH 16.10

HTH 16.10

TECHNICAL FEATURES

Lifting capacity: 16,000 kg

Capacity at maximum height: 9.000 kg

Lifting height: 9,50 m

Reach: 5,10 m

Engine: Mercedes OM 934 LA Stage IV

Rated power: 129 kW - 175 cv

Number of gears: 2/2

Hydraulic system: Load Sensing 350 bar

Length: 6,380 mm

Width: 2.570 mm

Ground clearance: 440 mm

Unladen weight: 20.500 kg

Speed of movement: 25 km/h

Climate control as standard: Yes

Automatic accessory recognition: Yes

REGULATIONS

CE certificate

EN 1459-2: concerning standards for slewing variable-reach trucks

EN 13000: concerning standards for hydraulic cranes

FOPS/ROPS

UE 2016/1628: concerning engine emissions standards
