TH 5.24

TECHNICAL FEATURES

Lifting capacity: 4,999 kg

Lifting height: 23.90 m

Engine: Deutz TCD 3.6 L4 - stage IV

Rated power: 100 kW - 134 cv a 2.200 giri/min

Number of gears: 2/2

Hydraulic system: Load Sensing 350 bar

Length: 6.75 m

Width: 2.50 m

Unladen weight: 15,500 kg

Travel speed: 40 km/h

Climate control as standard: Yes

Automatic accessory recognition: Yes

REGULATIONS

CE certificate

EN 1459-2: concerning standards for slewing variable-reach trucks

EN 280: concerning standards for mobile elevating work platforms

EN 13000: concerning standards for hydraulic cranes

FOPS/ROPS

UE 2016/1628: concerning engine emissions standards

Ask for information TH-5.24-REV08

Description

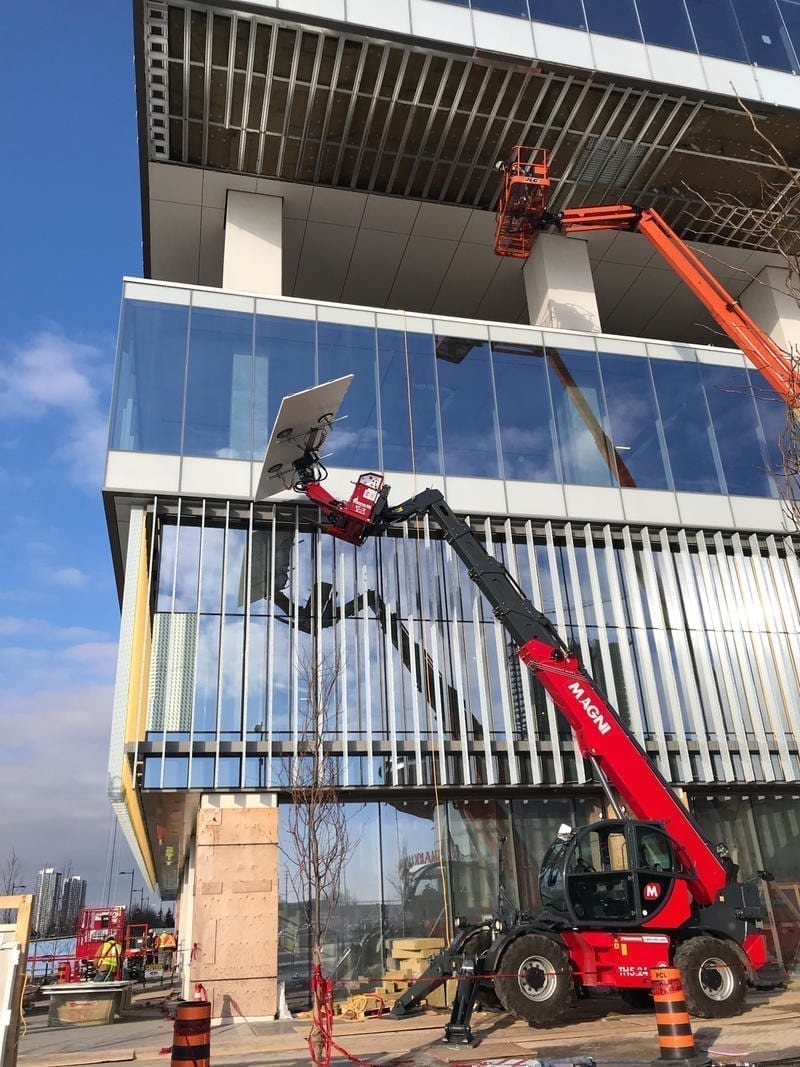

The TH 5.24 is a telescopic handler suited to demanding sites. It can reach 24 m in height in complete safety, even on rough terrain thanks to its automatic levelling â€“ which acts on both the wheels and stabilisers â€“ and its four-wheel drive system. The hydrostatic transmission offers precision and manoeuvrability. It is compatible with a huge range of accessories, and is equipped with the RFID system which provides automatic recognition of attachments and creation of the relative load charts. It is equipped with a side shift function, allowing the rear section of the chassis along with the telescopic boom to move laterally with respect to the machine’s longitudinal axis in order to correct the position of the load without having to move the vehicle. As this model is EN 13000 compliant, it can be equipped with a winch and thus work with suspended loads.

TH 5.24

TH 5.24
